Mitsubishi Ducted Air Handlers in Santa Clarita, CA

When does a ducted Mitsubishi system beat a mini-split?

When a Santa Clarita home already has a usable duct system and the homeowner wants the look of central air with the efficiency of an inverter. A lot of Valencia and Tesoro del Valle tract homes were built with ducts feeding a gas furnace and a central condenser. Rather than hang wall heads in every room, we can replace that coil-and-condenser with a Mitsubishi SVZ or MVZ multi-position air handler driven by an inverter outdoor unit, reusing the registers and most of the duct runs. The result is quiet, modulating comfort through the vents you already have.

The catch in a 1990s tract home is the ductwork itself. Leaky, undersized, or attic-baked ducts kill an inverter's efficiency and can trip a 44-style airflow-restriction logic on some systems. We check static pressure and duct leakage up front; since Title-24 Zone 9 requires duct-sealing with HERS verification on any duct alteration regardless, that is the natural moment to seal or swap out failing runs.

Which ducted families do you service, model by model?

On the M-Series side, SVZ and MVZ multi-position air handlers (for example SVZ-KP24NA, MVZ-A24AA7) for whole-home residential ducted comfort, and the SEZ low-static slim-duct units (SEZ-KD12NA4) for short concealed runs in a closet or ceiling. On the P-Series side, PEAD slim horizontal-ducted air handlers (PEAD-AA24NL) and PVA multi-position air handlers (PVA-A24AA7, PVA-A36AA7, PVA-A42AA7) for higher capacity or light-commercial duty, paired with PUZ outdoor units like the PUZ-HA42NKA1 or the R-454B PUZ-AK24NLHZ. These cover the range from a single-zone ducted conversion to a large two-story home.

• SEZ-KD slim-duct (e.g. SEZ-KD12NA4): low static, fits above a hallway ceiling or in a closet, best for one zone or a short run; the lightest-duty option here.
• SVZ-KP multi-position (e.g. SVZ-KP24NA): M-Series whole-home air handler that mounts up-flow, down-flow, or horizontal; the common drop-in for a removed furnace coil in a Valencia or Tesoro tract home.

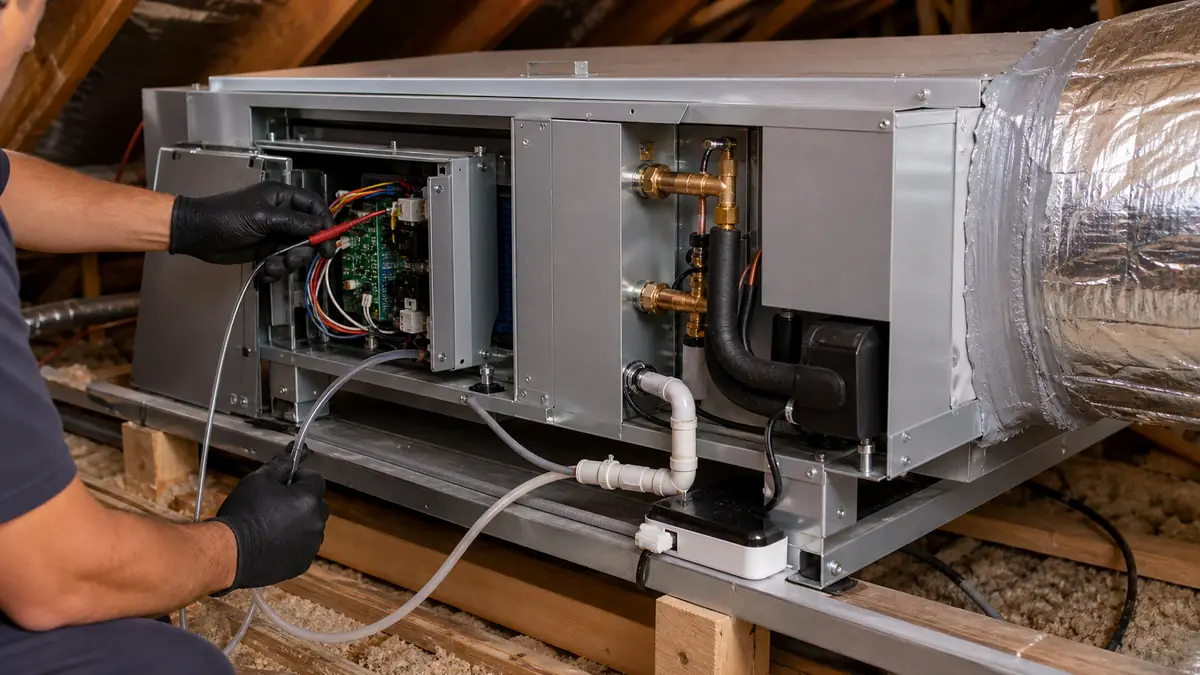

• MVZ-A multi-position (e.g. MVZ-A24AA7): the current M-Series multi-position platform, ECM blower, whole-home ducted with a Mitsubishi inverter condenser.
• PEAD-AA slim duct (e.g. PEAD-AA24NL): P-Series horizontal slim-duct, higher static capability for longer or tighter runs; newer pairings run R-454B.
• PVA-A air handlers (A24/A36/A42AA7): P-Series multi-position for larger homes and light-commercial loads, on a PUZ outdoor unit.

Ducted inverter vs a multi-zone mini-split: which wins in the SCV?

Both run on the same Mitsubishi inverter compressor, so this is about delivery, not efficiency class. A ducted SVZ/MVZ keeps the central-air look - air comes from the ceiling registers you already have, no wall heads in sight, one thermostat or controller for the home - and it is the cleaner fit when the existing ductwork is sound. A multi-zone MXZ-SM with wall or floor heads gives true per-room setpoints and dodges bad duct entirely, which wins in a home with leaky attic-baked runs or rooms that never balanced. The honest tradeoff: ducted is simpler to live with and cheaper to retrofit when the ducts are good; ductless costs more per zone but solves the duct problem and zones tighter. In a 1990s tract home with usable ducts, ducted usually wins; in a Newhall ranch with no ducts, ductless does.

Is a ducted Mitsubishi system right for your home?

Three quick tests. One: do you have ductwork, and does a static-pressure and leakage check show it is salvageable? If yes, ducted is in play; if the ducts are shot and not worth replacing, lean ductless. Two: do you want the registers-only look with no visible indoor units? Ducted delivers that. Three: is the air handler location workable - a closet, attic platform, or the old furnace spot with drainage and service access? If those line up, an SVZ-KP or MVZ-A on a right-sized inverter condenser is a strong call. We run the static-pressure test and the Manual J before recommending either way.

How do you size a ducted air handler for the SCV?

Off a Manual J load and a static-pressure check, not the old furnace's tonnage. An oversized air handler in a Santa Clarita home short-cycles and never eases into the steady modulation that makes an inverter efficient. We match the air handler and condenser to the calculated load and the duct system's real capacity. See the sizing briefing and the AC installation page for the full process.
